Building a Clayton 2" Scale Steam Wagon

designed by Robin Dyer

built by Tony Simons

Valve chest

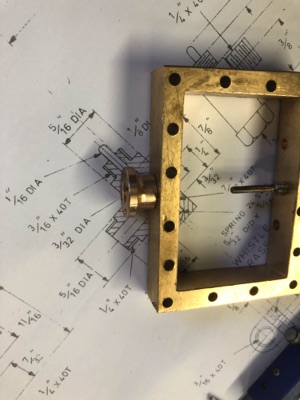

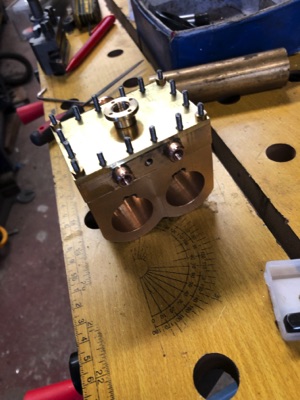

Moving on, the next item was the valve chest, the faces were cleaned up in the 4 jaw chuck and the stud pattern laid out using the DRO.

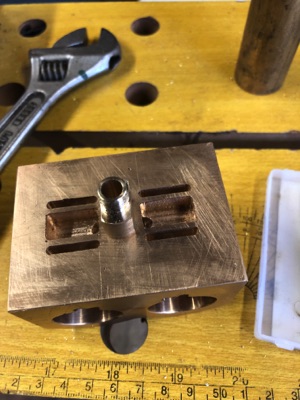

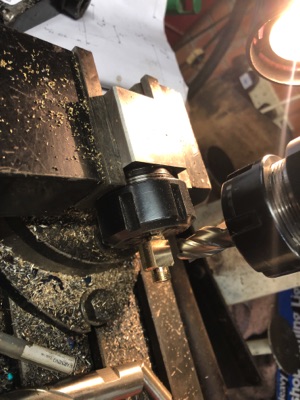

The exhaust stub was next, Just a straight turning job but it needed flats milling on 2 sides to clear the valves. I used a Stevenson collet block to hold the stub and it made it easy to index 180°.

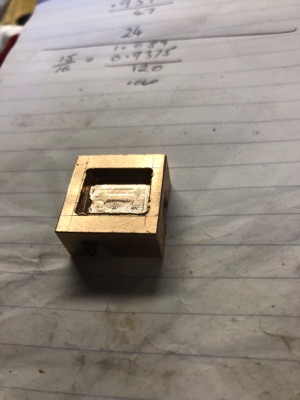

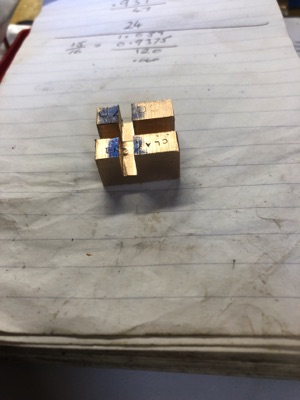

The valves were next, they needed a pocket milling out, I roughed it out with a large end mill and then cleaned the corners out with a 3mm cutter. Flipped over and the grooves cut for the valve rod and cross nut.

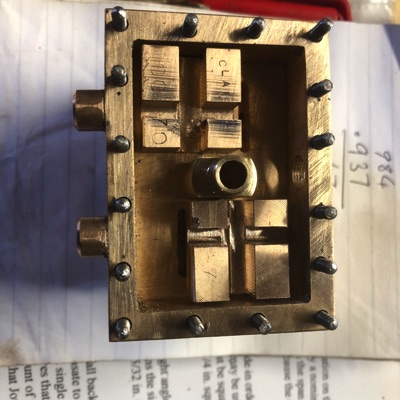

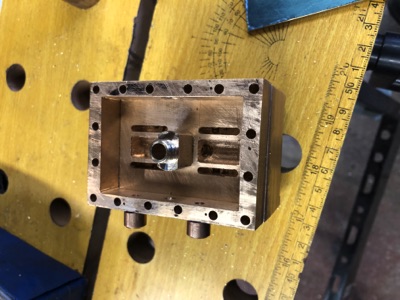

A few 2BA studs had to be made  and then I could assemble it all.
