Building a Clayton 2" Scale Steam Wagon
designed by Robin Dyer
built by Tony Simons

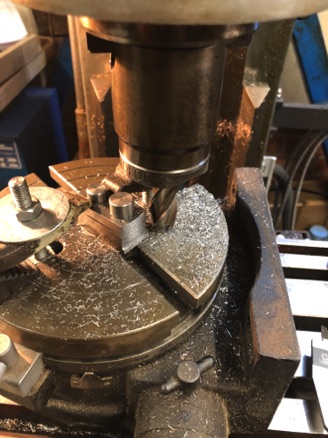

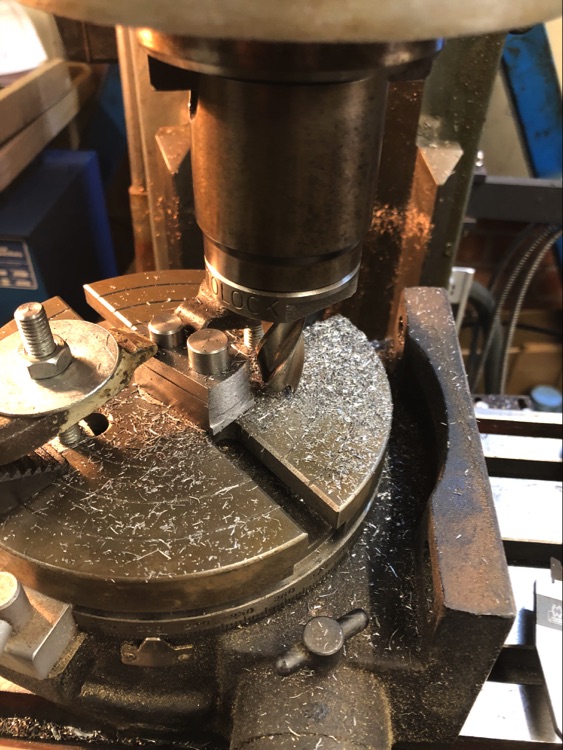

Machining the web radii
Webs finished

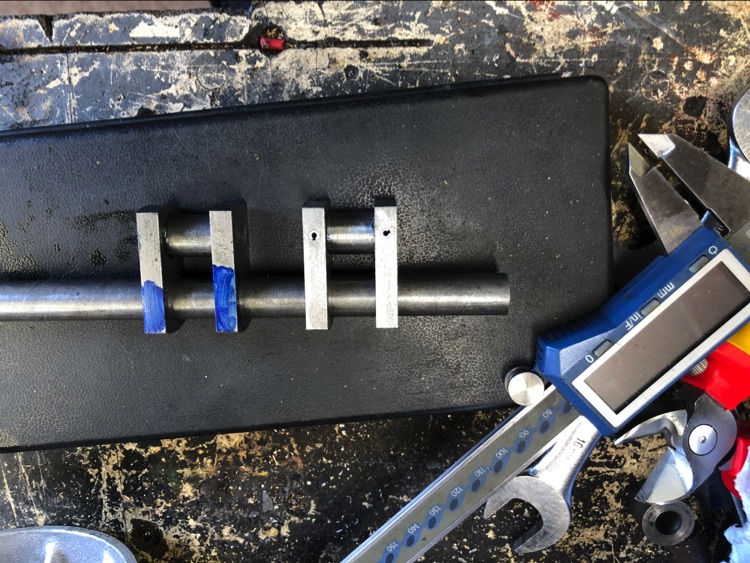

Build up

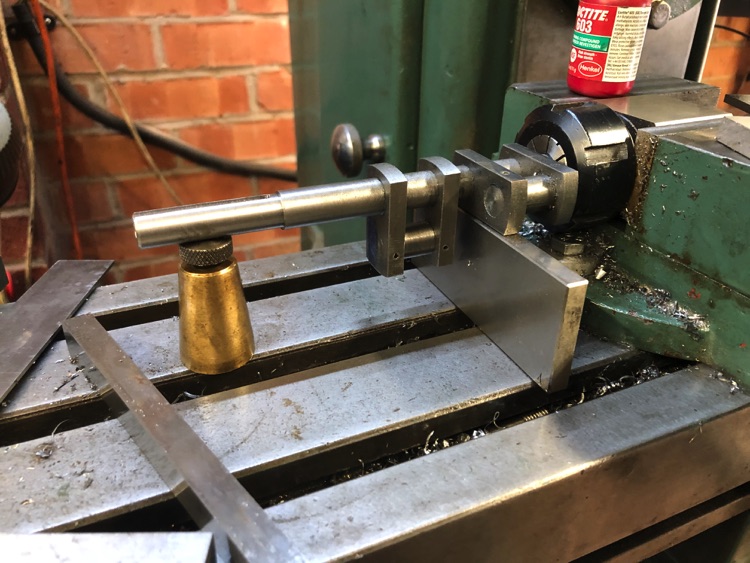

Set up in collet block

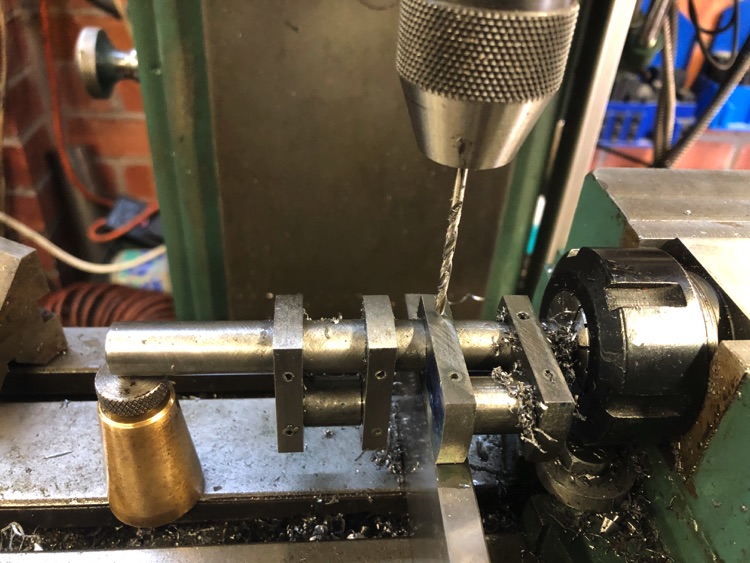

Drilling the crank for pinning

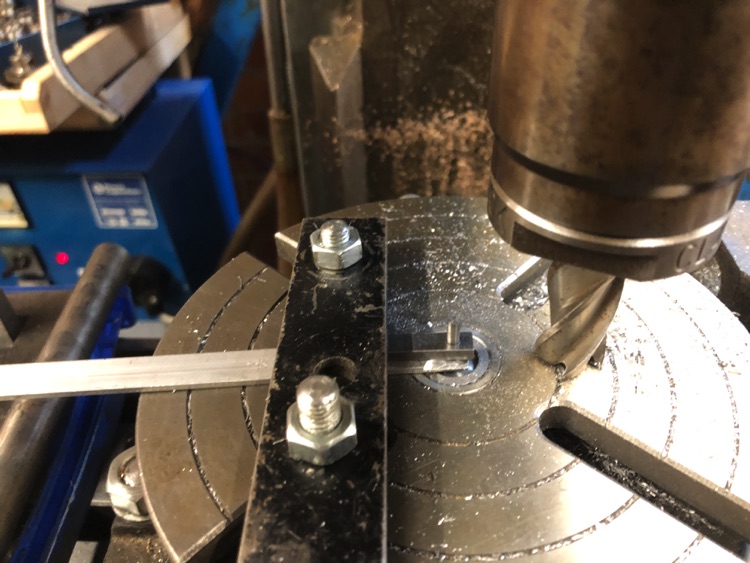

Radiating the ends of the connecting rod

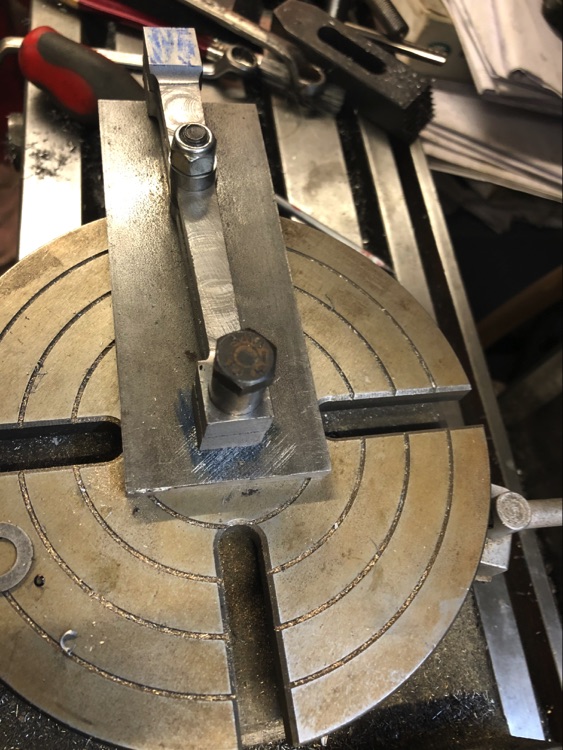

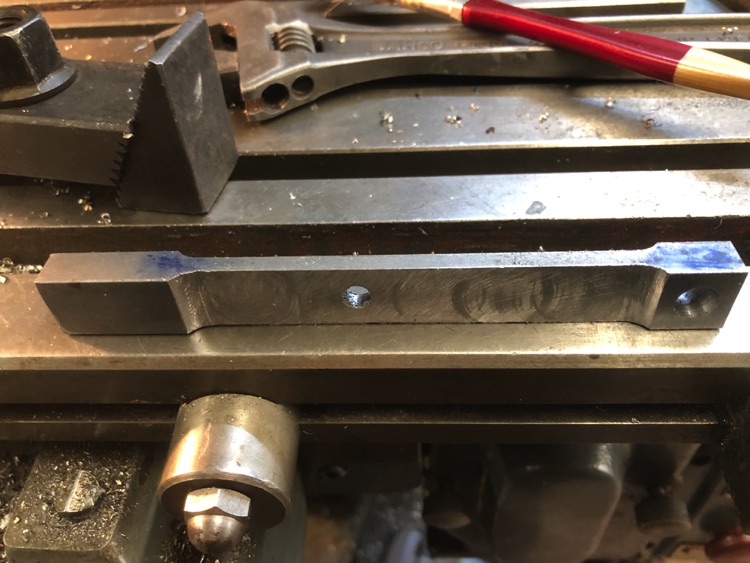

Jig to hold the con rod

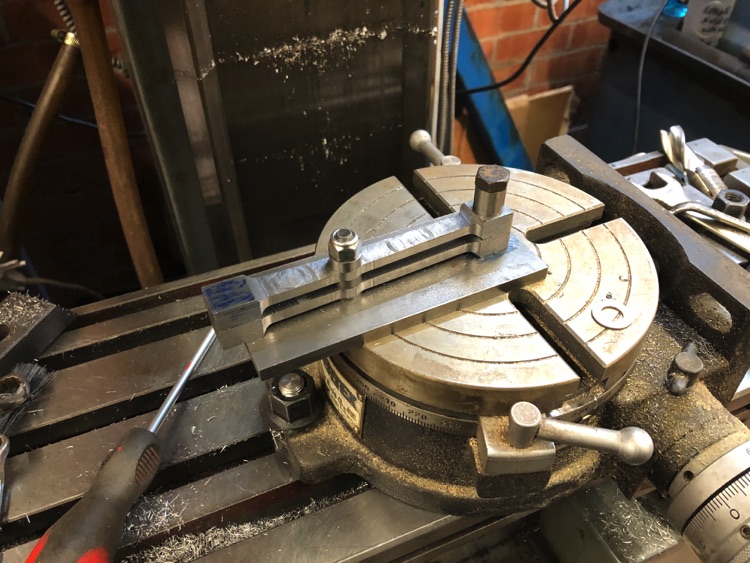

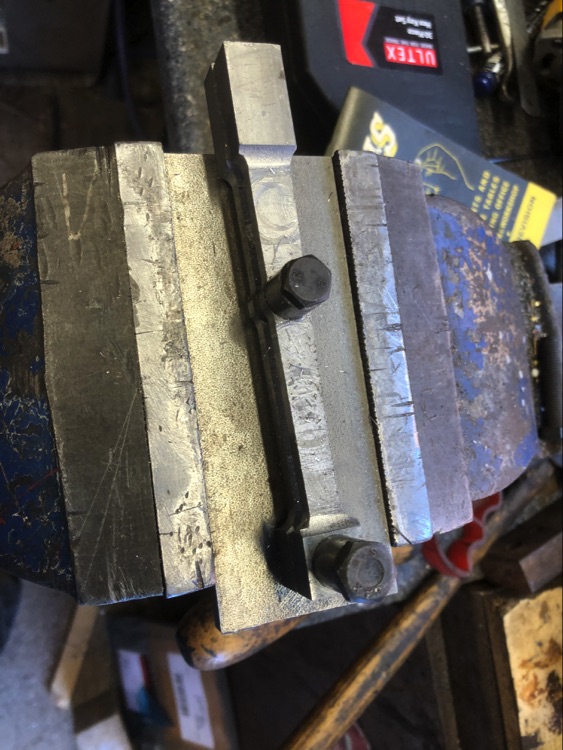

Jig being used to machine the rod

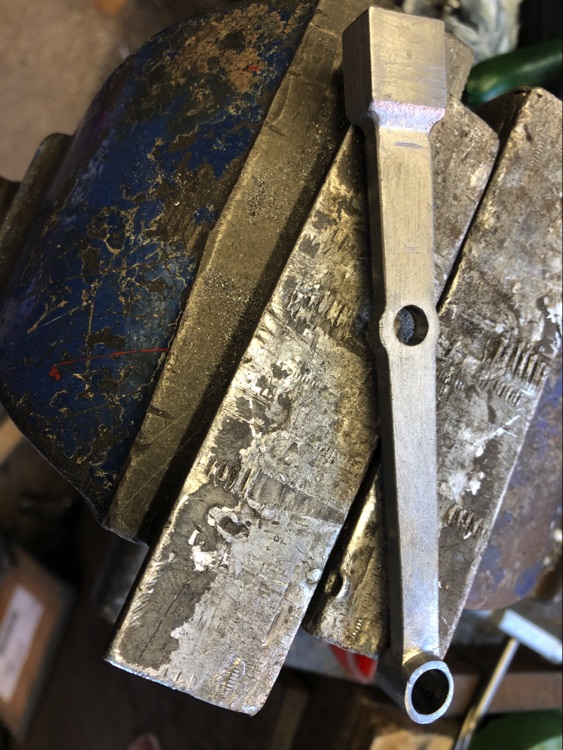

One done

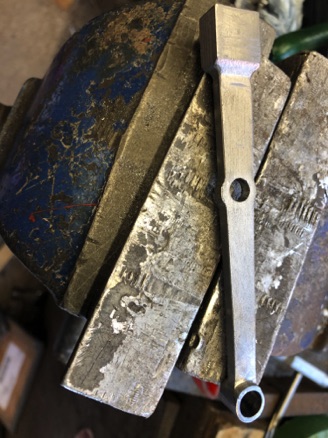

Looking like a con rod!
Big end brasses

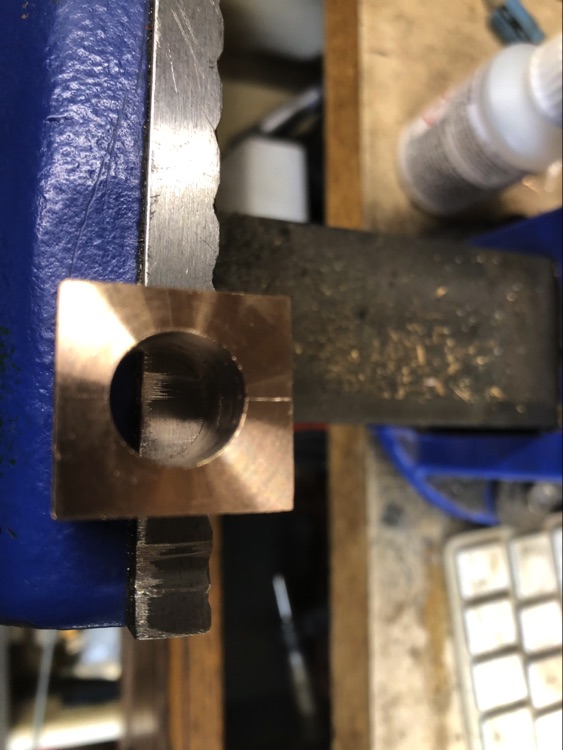

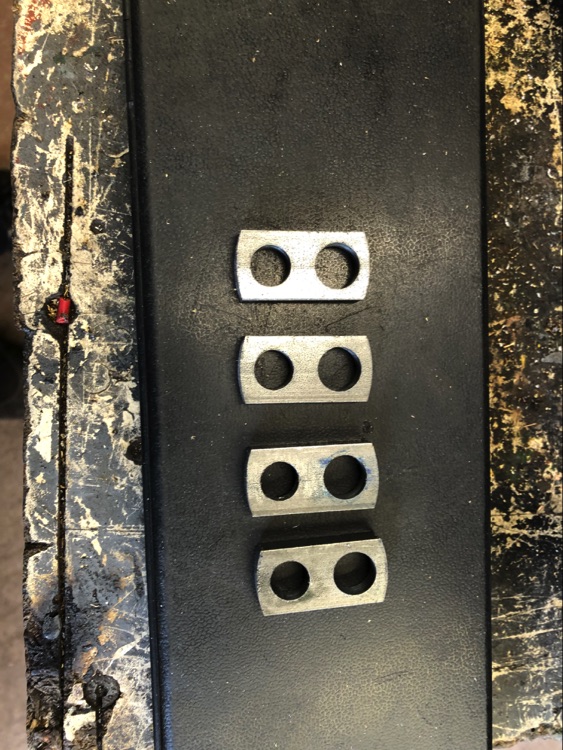

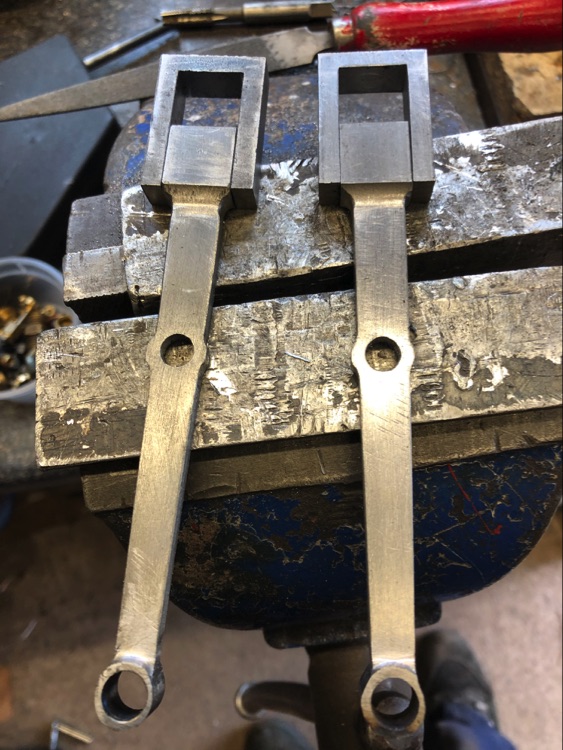

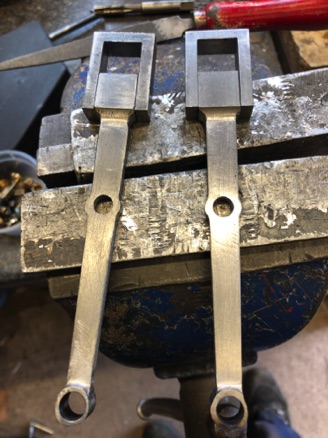

Bearing retaining steps

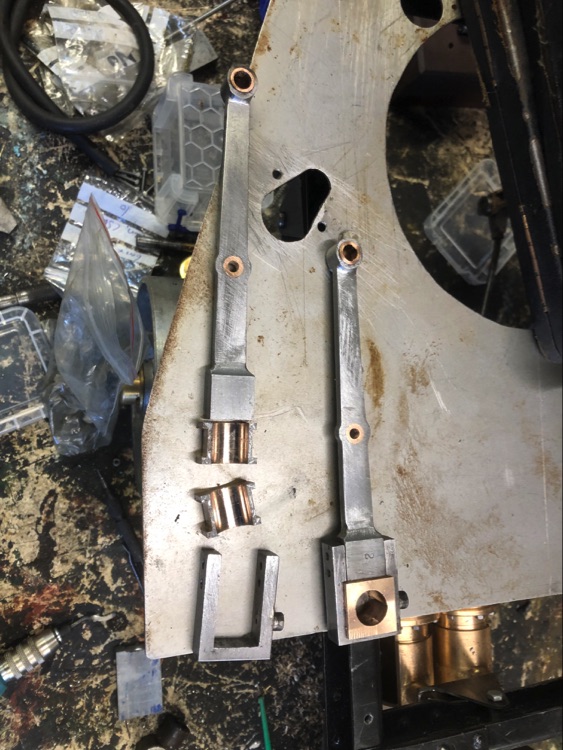

Big end bushes & straps

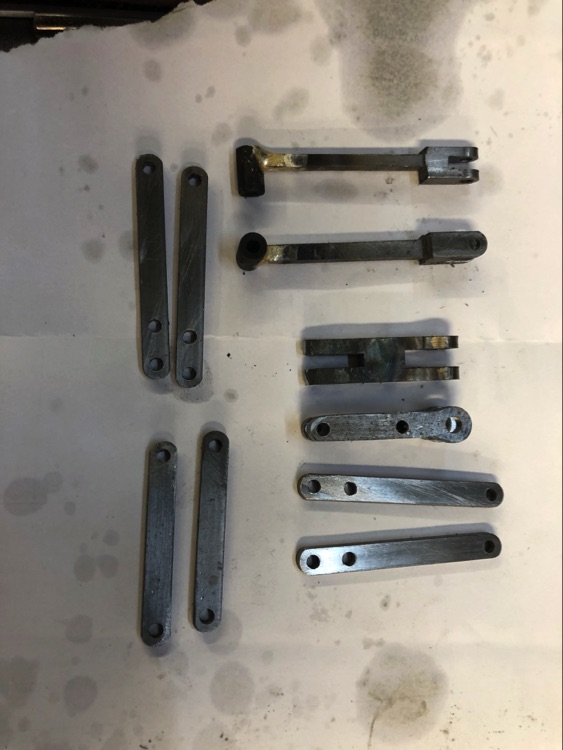

Joy valve gear links

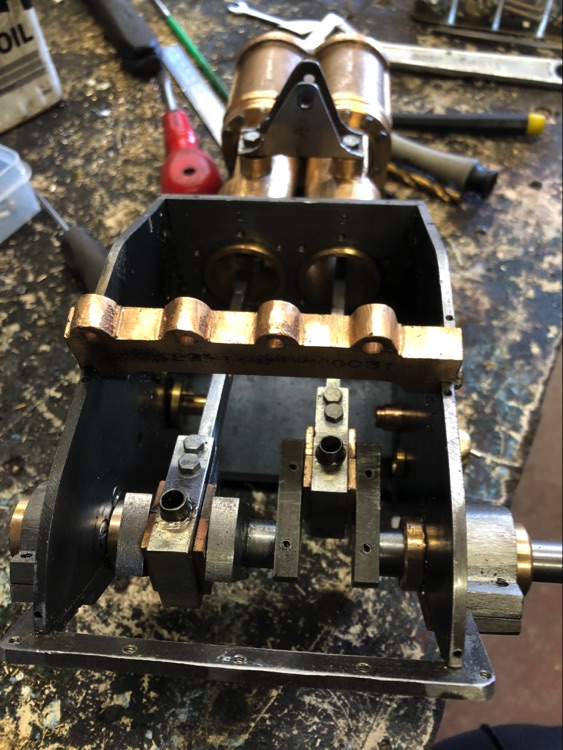

Crank in situ

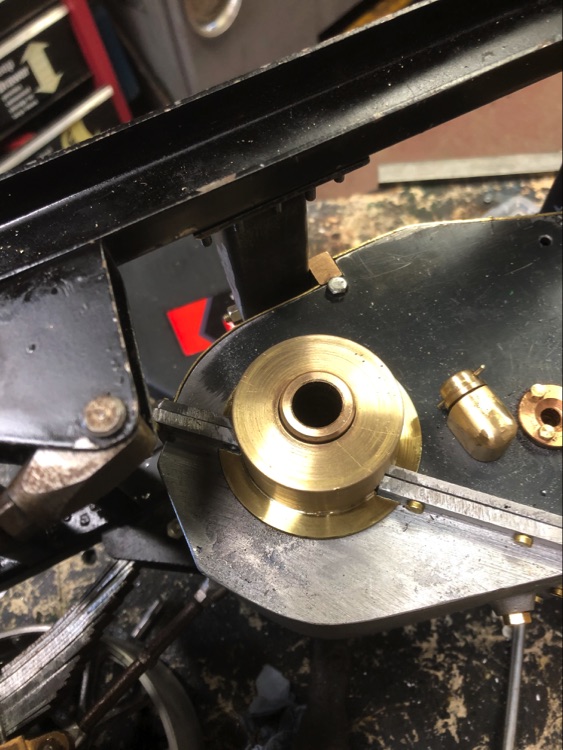

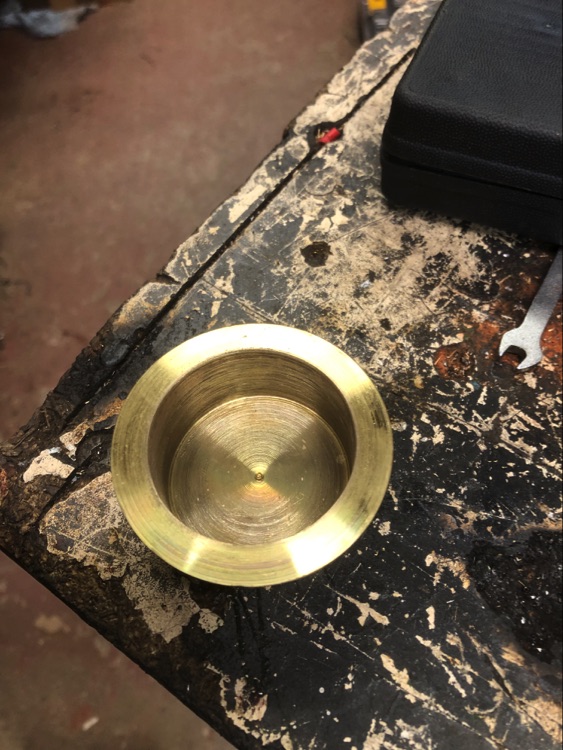

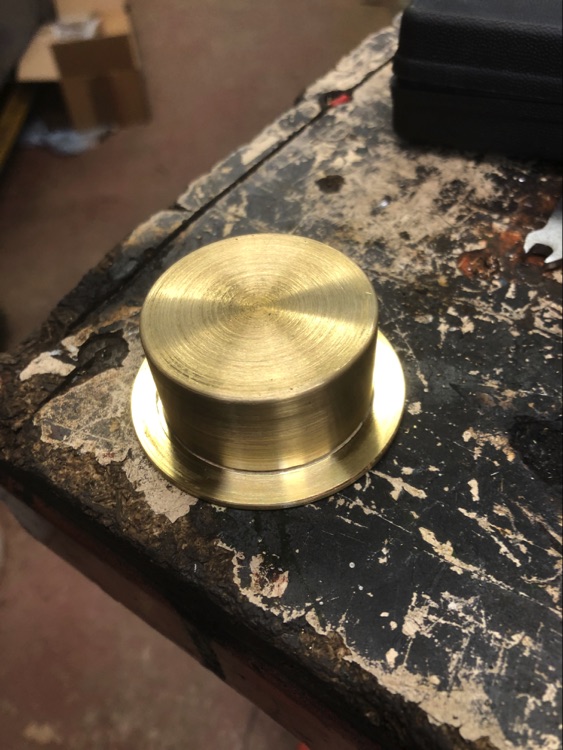

Crank end cover
Fabricated cover

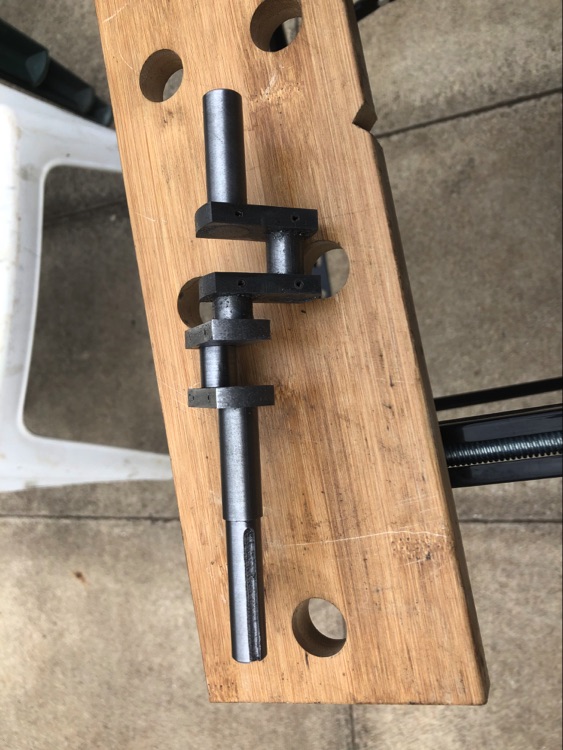

Crankshaft and valve links
Crankwebs were drilled and then mounted on a rotary table to cut the radii. Silver steel was used for the crank itself and in normal fashion I drilled and pinned and Loctite'd the webs and then cut out the shaft between the crank webs. I used the Stevenson collet block to ensure the webs were 90° to each other. The connecting rods were next and I made a jig to hold them for machining. Various links for the Joy valve gear were made. The last job was to make main bearing covers.
