Building a Clayton 2" Scale Steam Wagon
designed by Robin Dyer
built by Tony Simons

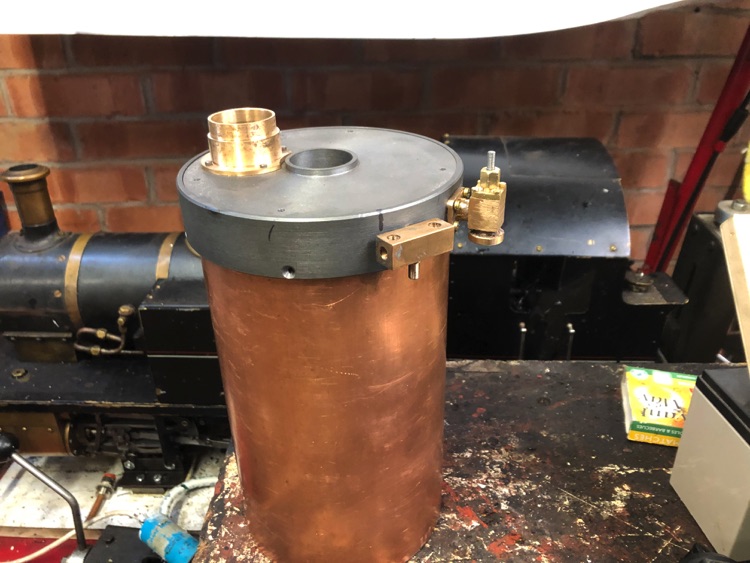

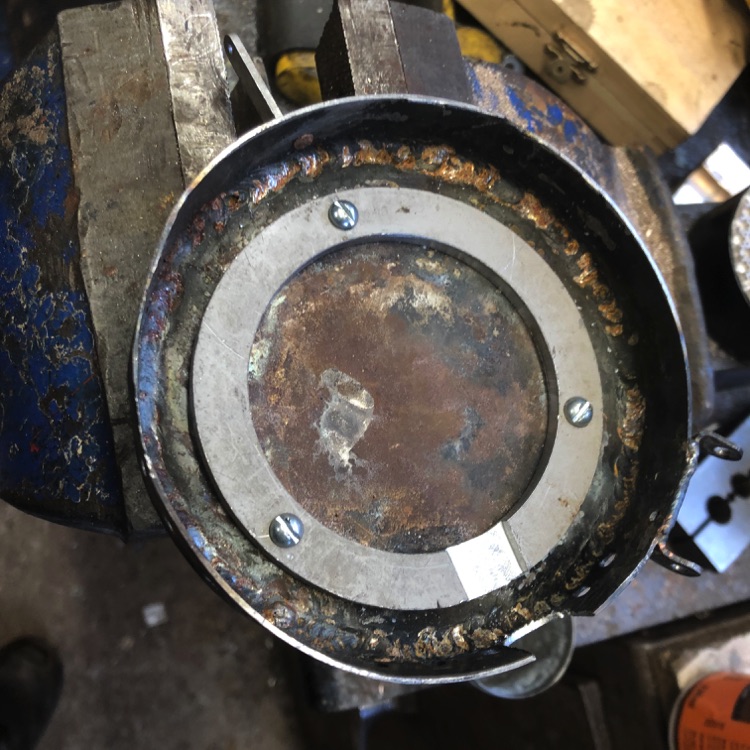

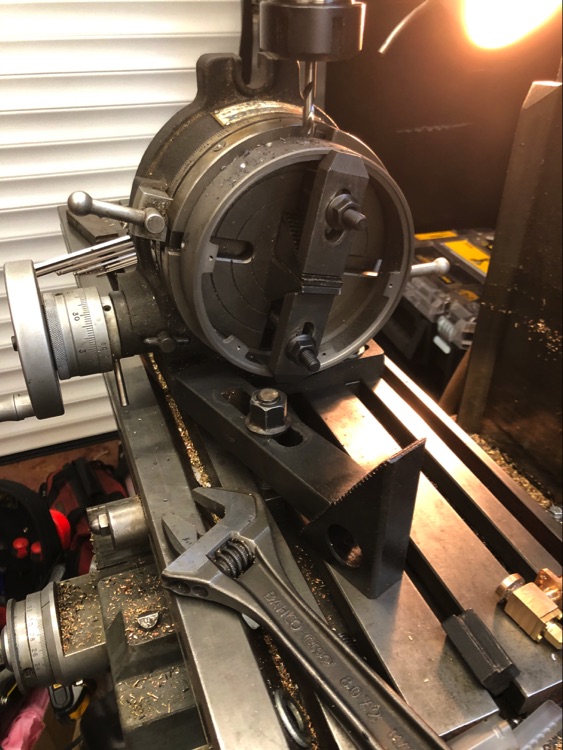

Smoke box ring

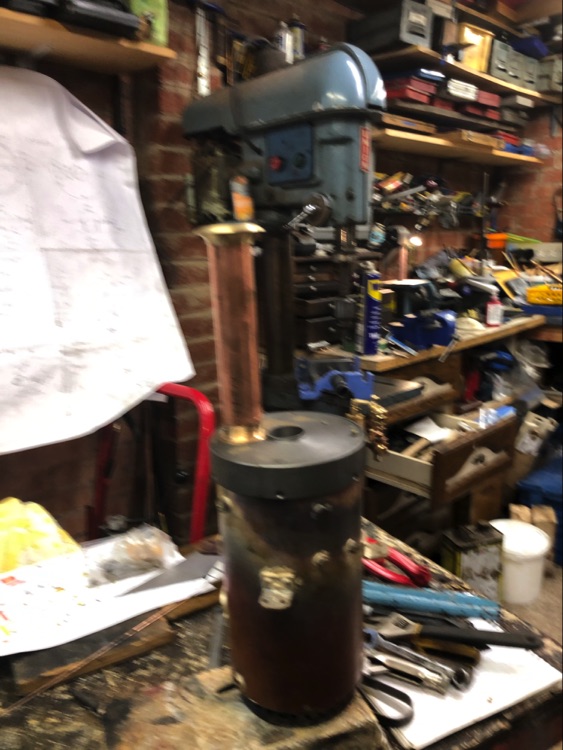

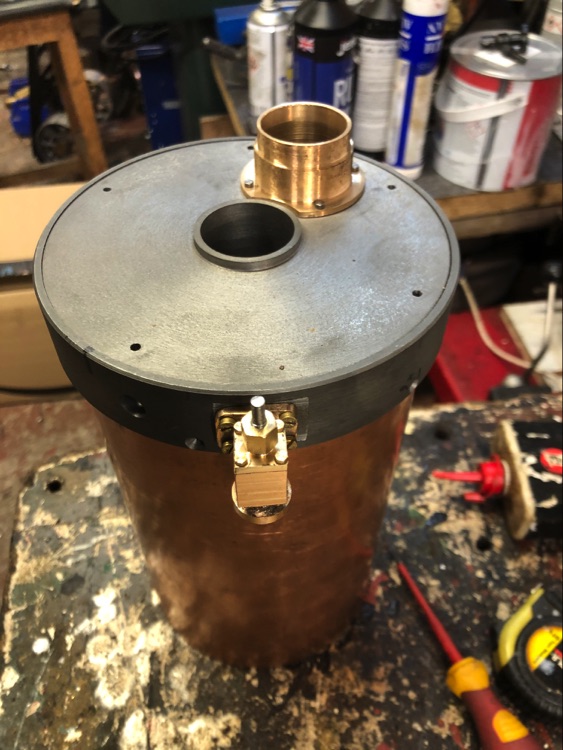

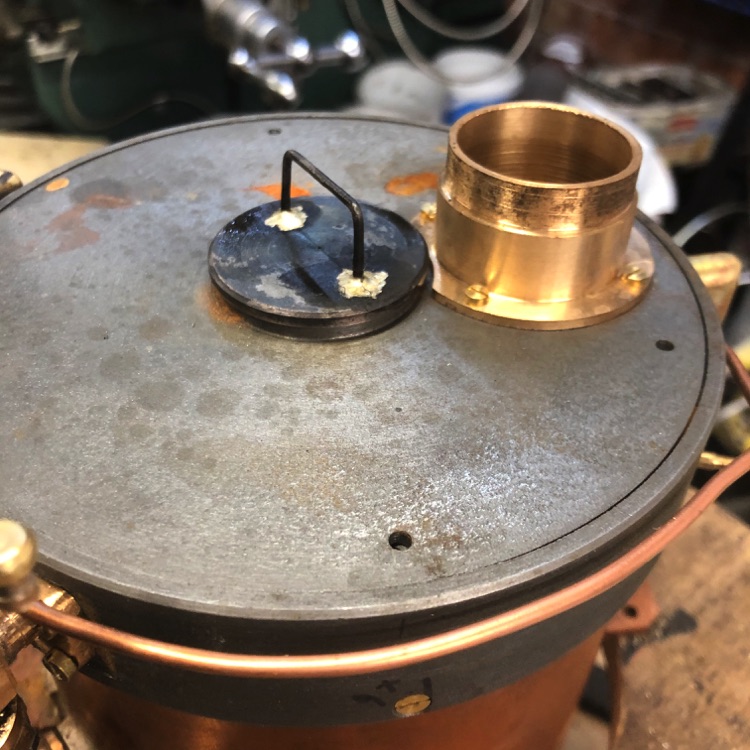

Smoke Box top

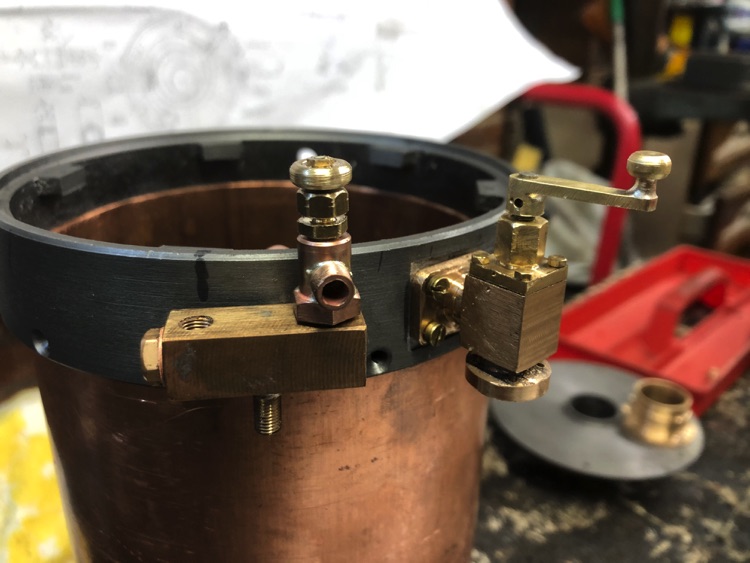

Manifold and regulator in place
Steam header

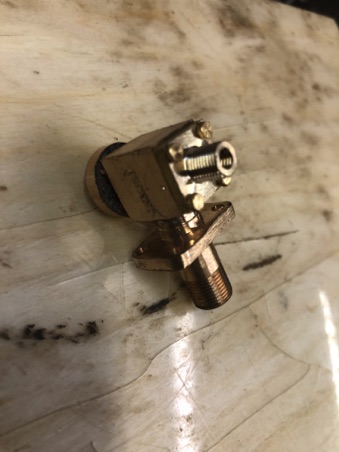

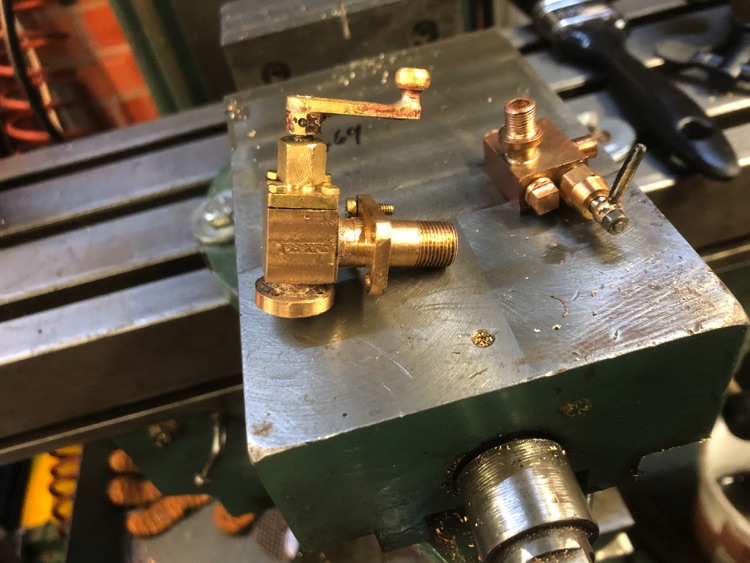

Regulator

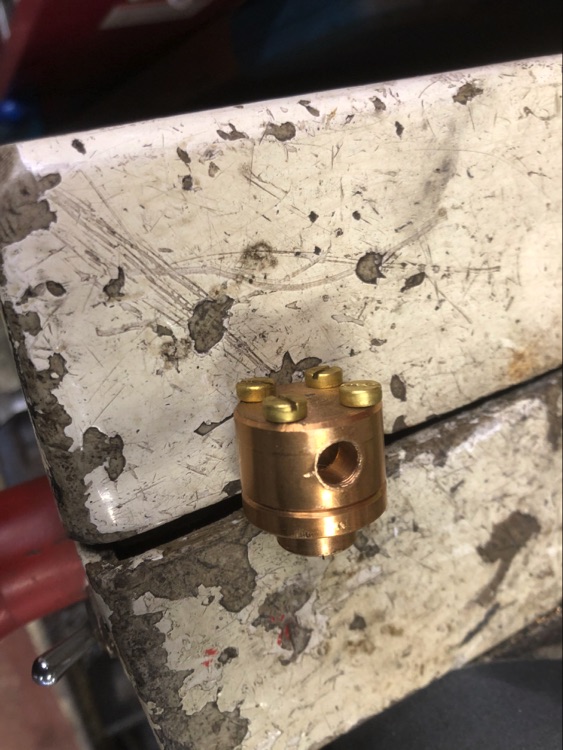

Safety valve body

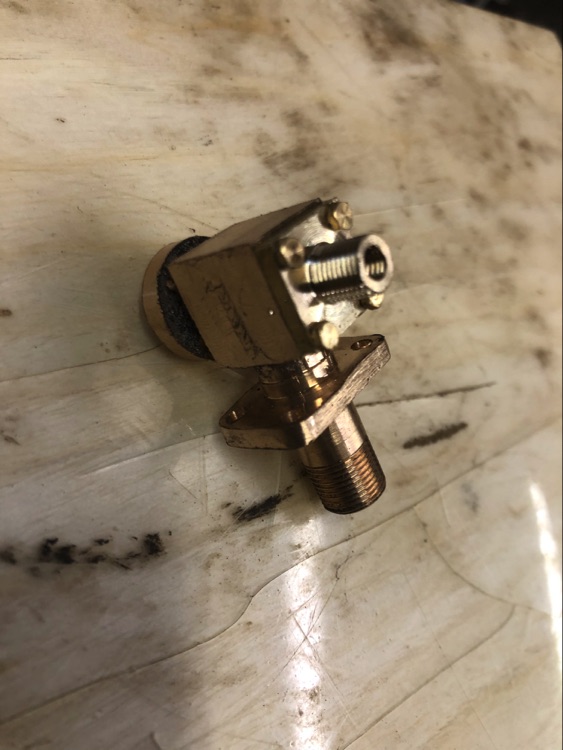

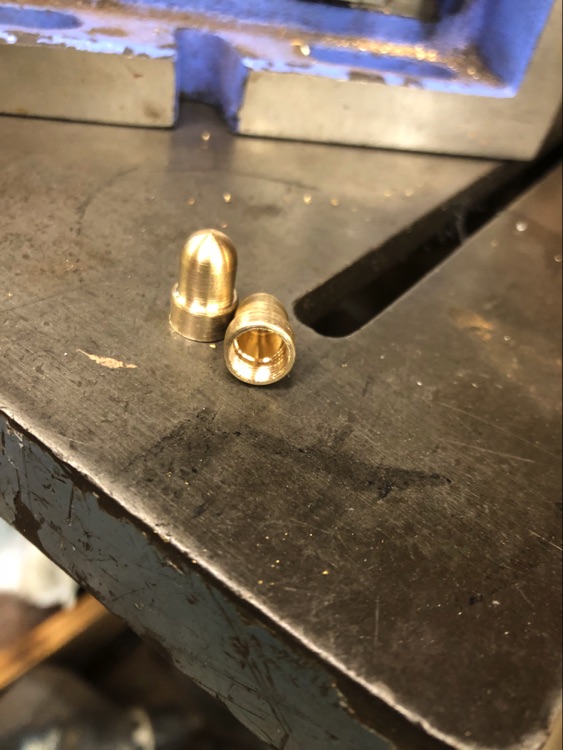

Safet valve covers

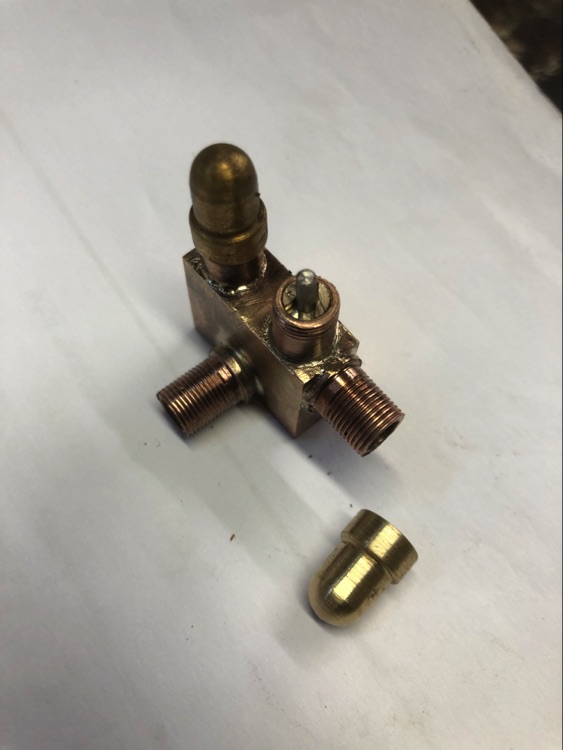

Finished safety valve
Regulator

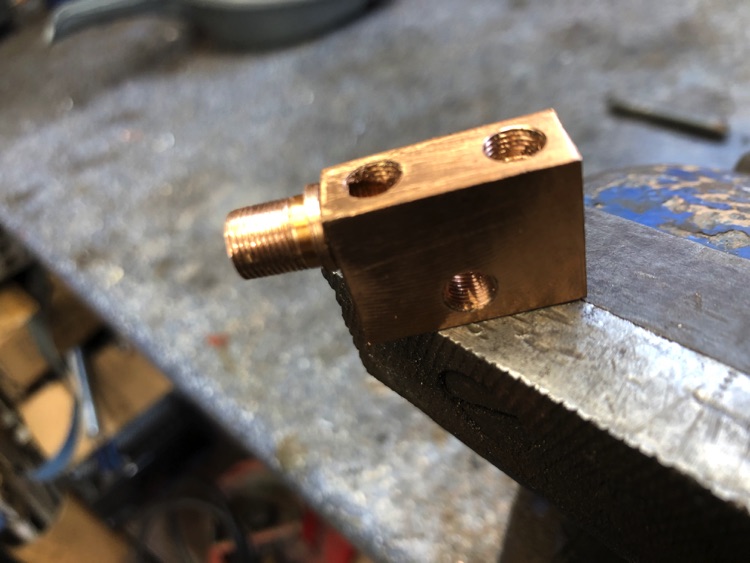

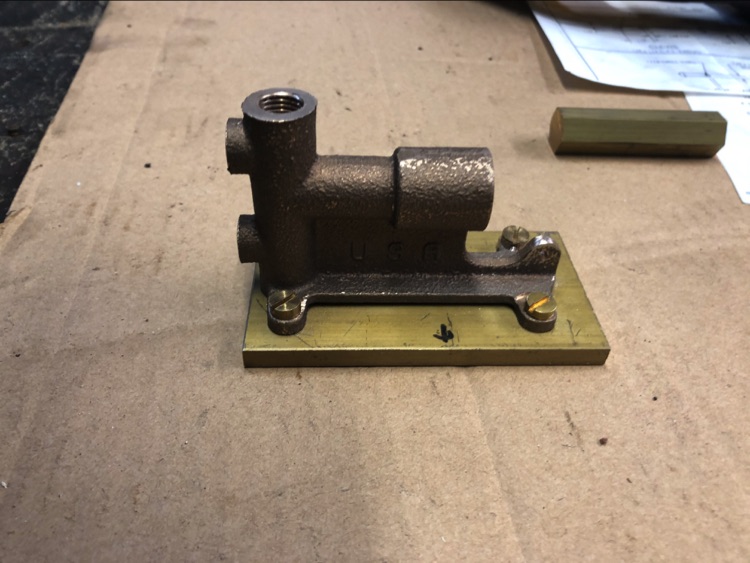

Manifold

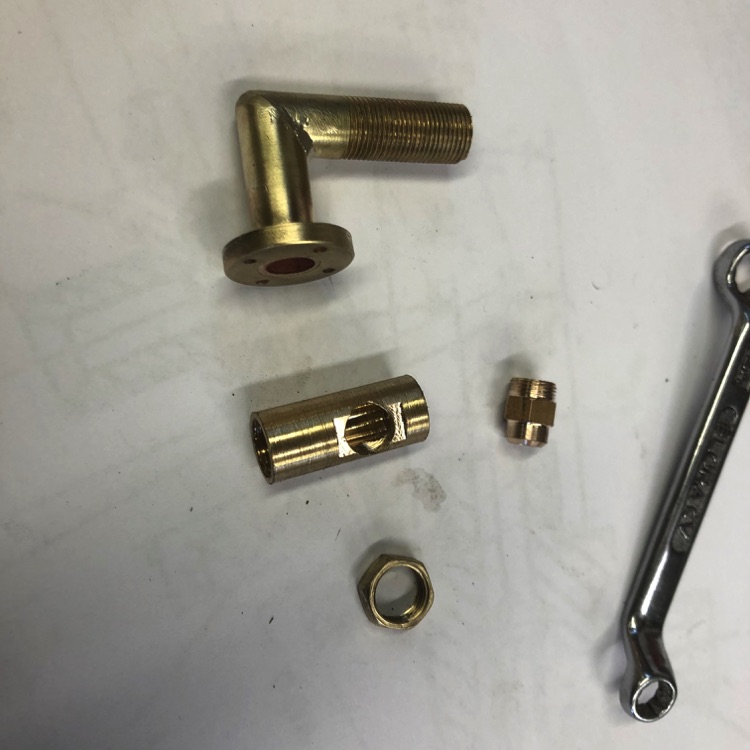

Exhaust pipe elbow and blast pipe
Blast pipe at bottom of chimney

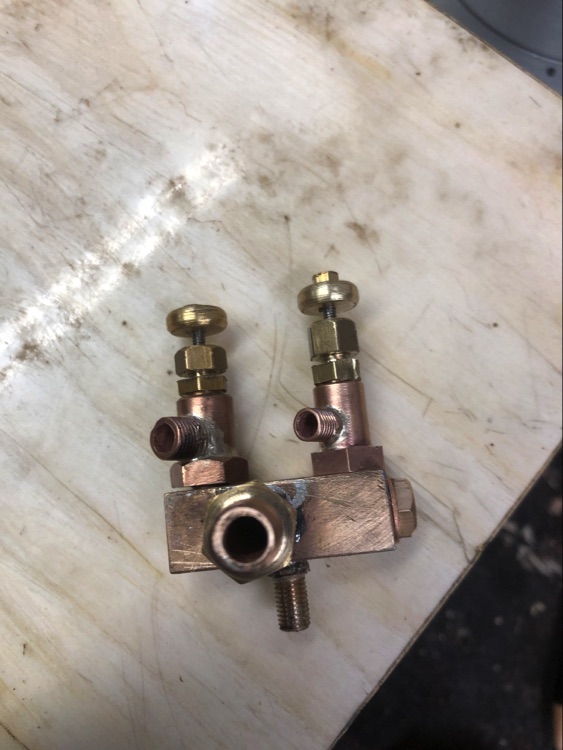

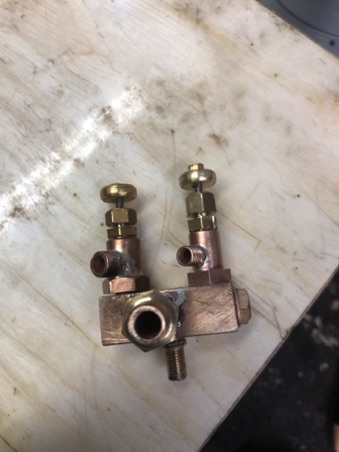

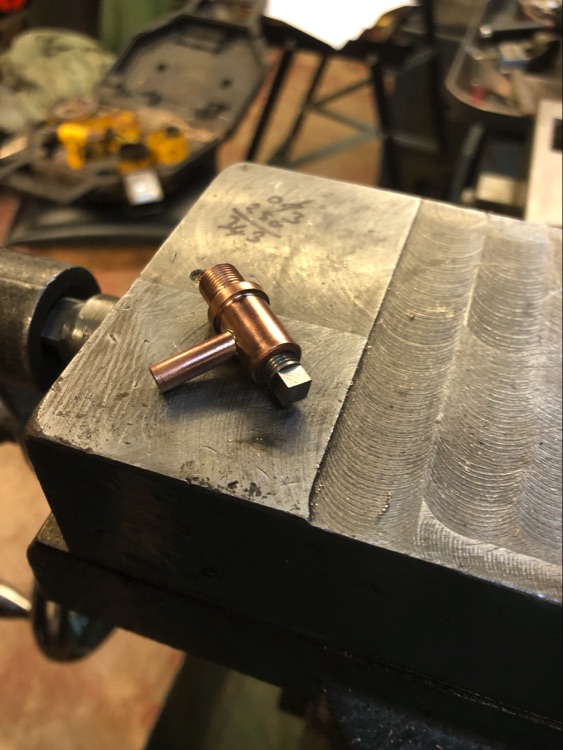

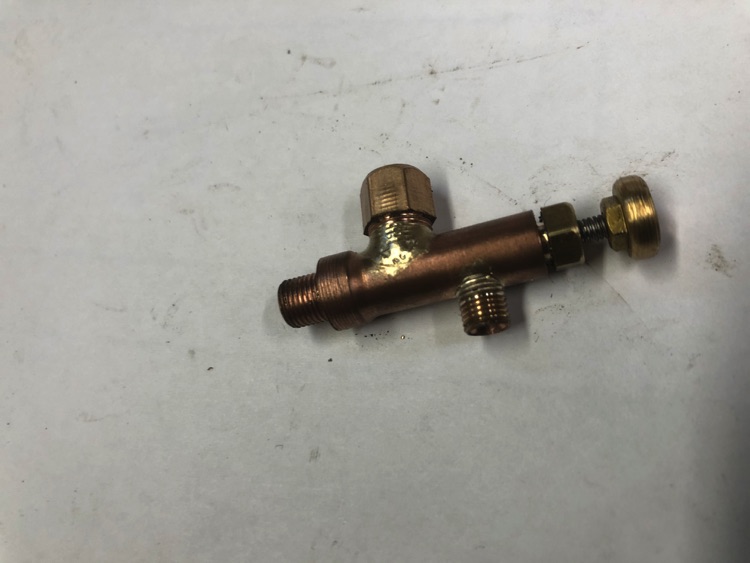

Blower and injector steam valves
Blow down valve

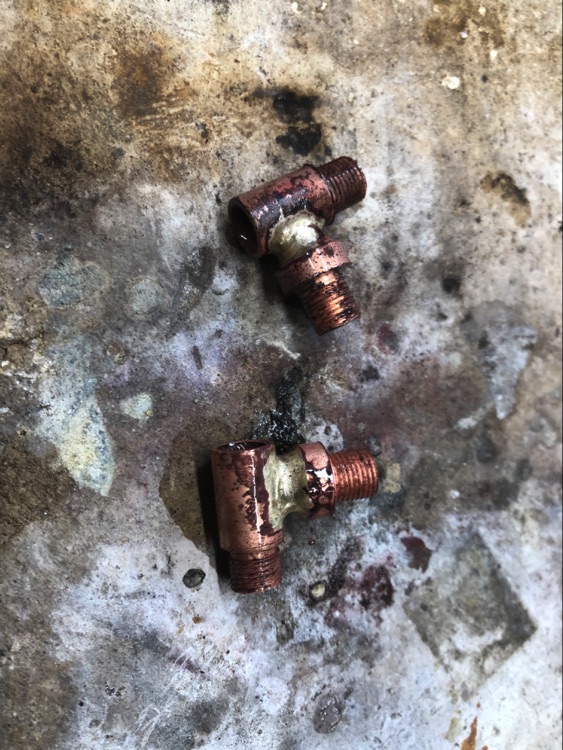

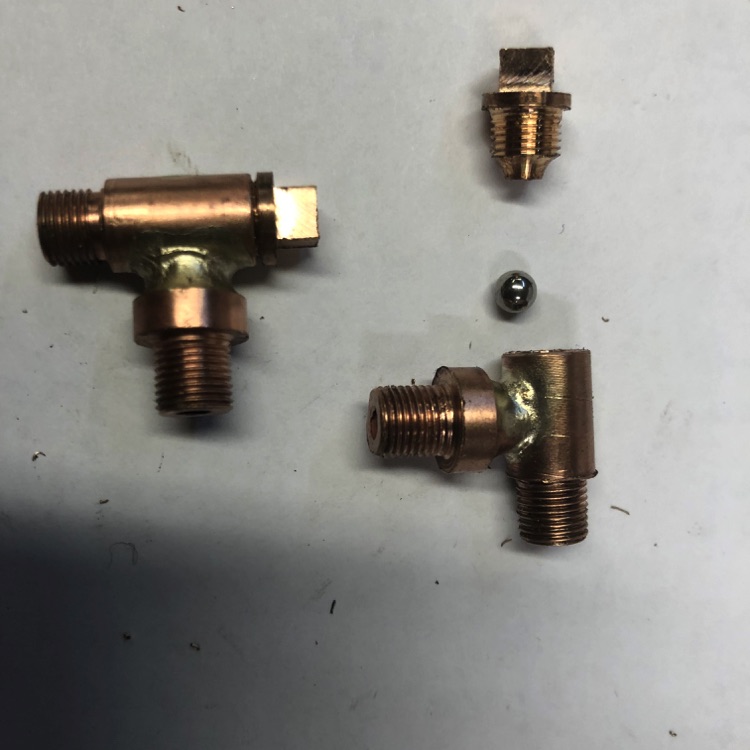

Clacks just been silver soldered
Finished clacks
Lower water gauge & drain
Did I really make all these?

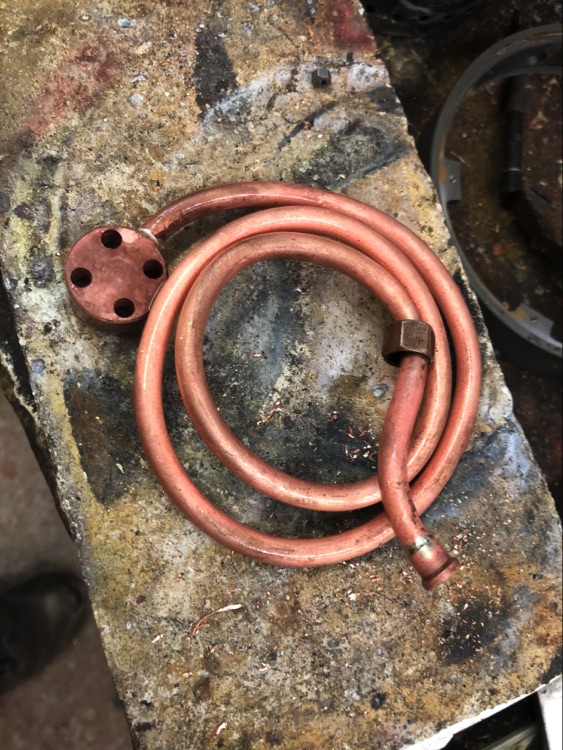

Super heater coil silver soldered

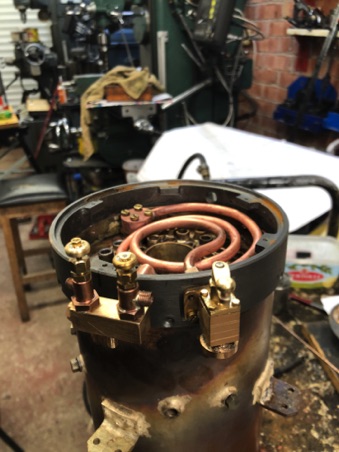

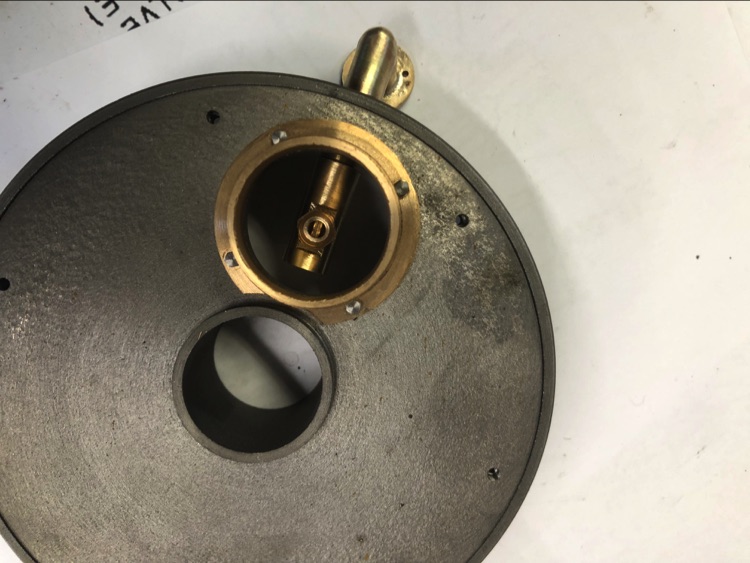

Installed onto the regulator body

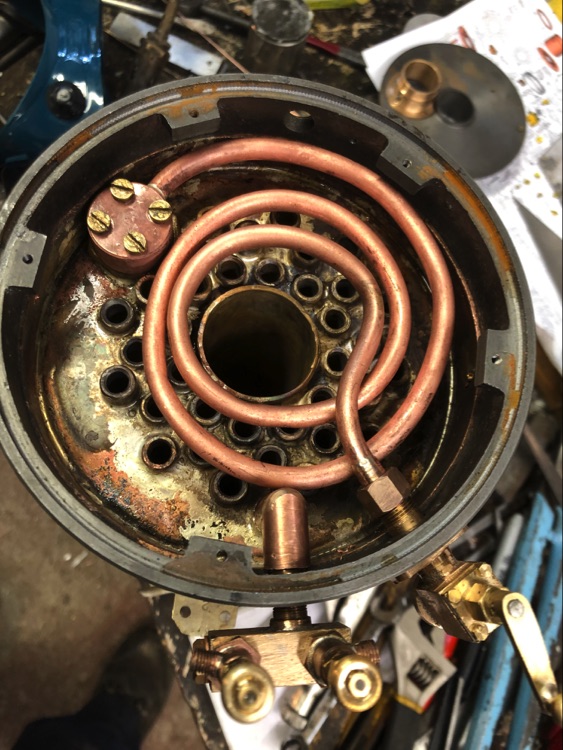

Coil installed
Smoke box fitted.

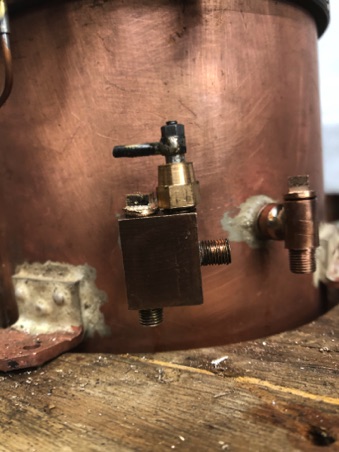

Water pump bypass

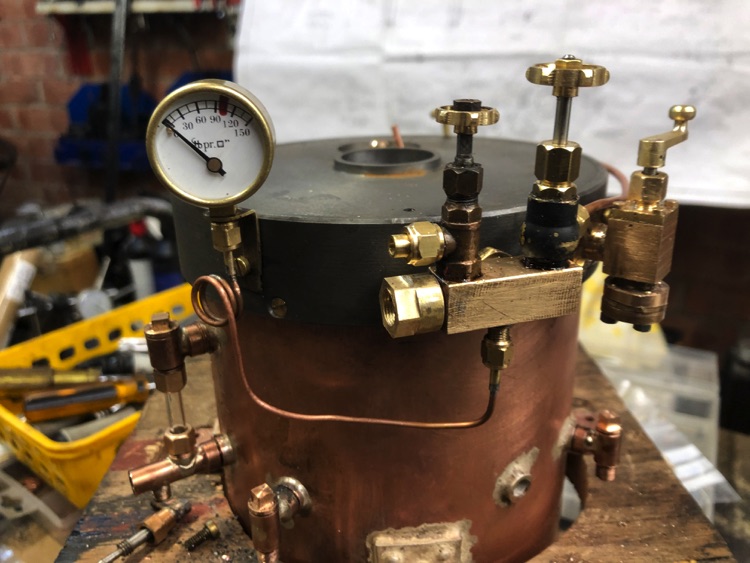

Pressure Gauge & manifold

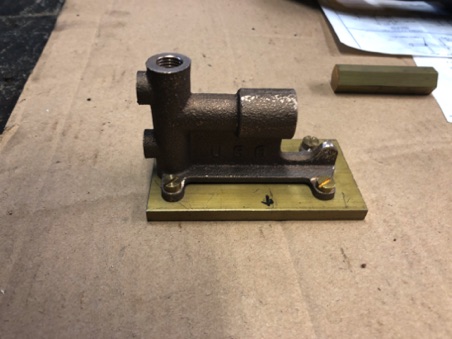

Boiler feed pump under construction

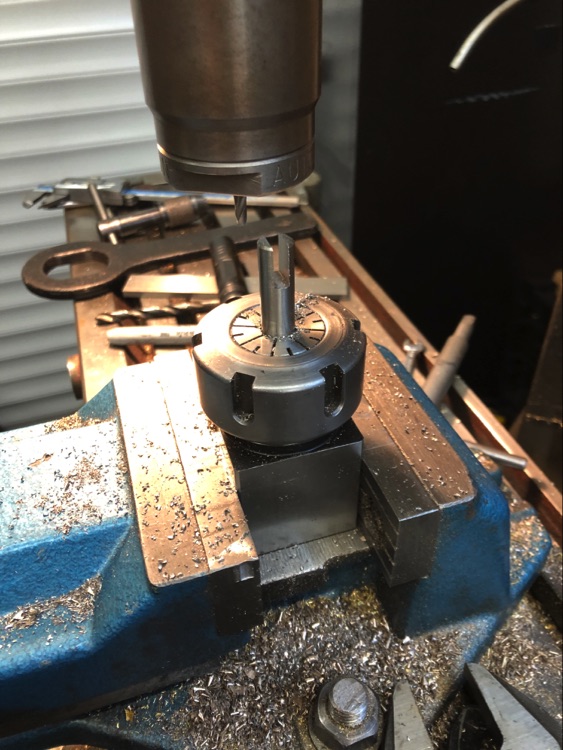

Machining pump plunger
Burner locating ring

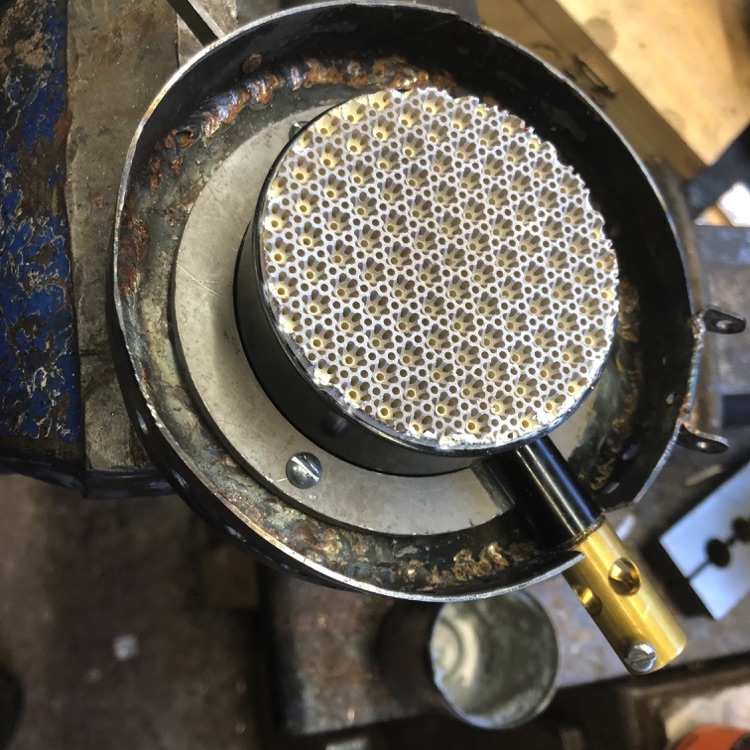

Burner in place

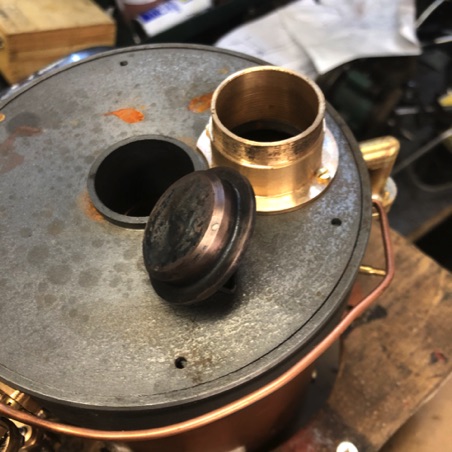

Firing hole cover
Firing hole cover

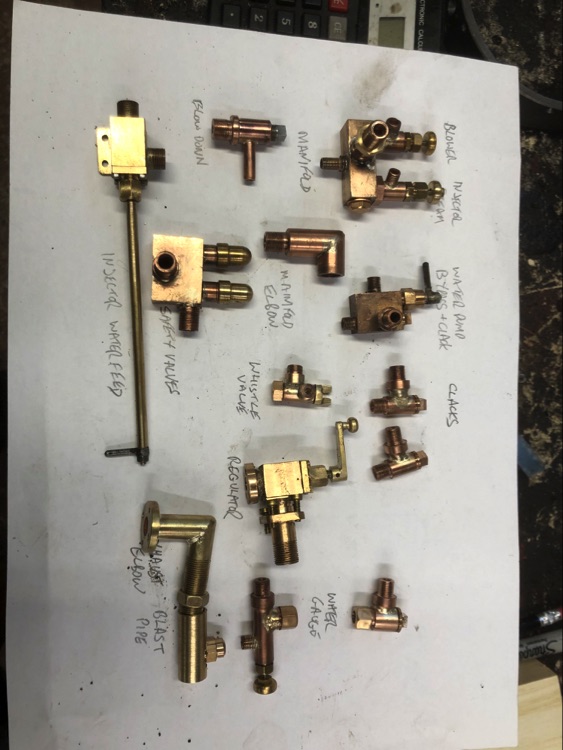

Boiler fittings
The various boiler fittings were made out of either Phosphor bronze or Gunmetal, Brass is not allowed on boiler due to it dezincifying and becoming brittle. The smoke box ring and top were a cast iron component..
